| 브랜드 이름: | TENDARS |
| 모델 번호: | PM-G-25x40m |
| MOQ: | 1세트 |
| 가격: | USD 71-162 / Square Meter |
| 포장에 대한 세부 사항: | 튼튼한 직조 가방에 접힌 PVC 직물, 보호 필름과 함께 묶인 알루미늄 프로파일, 수출 등급 합판 상자에 포장됨 |
| 지불 조건: | T/T, L/C, 웨스턴 유니온 |
This 25x40m pagoda style g series a-frame A-frame marquee tent is professionally engineered for outdoor wedding reception and outdoor celebrations. Designed with a clear span structure that eliminates interior support poles, it provides an unobstructed event space ideal for seating up to 1000 guests.
The frame is manufactured from 6061/T6 hard pressed extruded aluminum alloy with anodized anti-rust surface treatment, ensuring exceptional structural integrity and a service life exceeding 20 years. All aluminum profiles are precision-cut using advanced CNC machinery with tight tolerance control (±0.2mm), guaranteeing seamless assembly and reliable performance under demanding conditions.
The roof features 850g/m² double PVC-coated polyester fabric with UV-stabilized acrylic surface treatment. This high-performance material delivers superior waterproofing, UV resistance, and flame retardancy certified to DIN4102 B1 / M2 standards. The fabric withstands temperatures from -30°C to +70°C, making it suitable for year-round deployment across diverse climate zones.

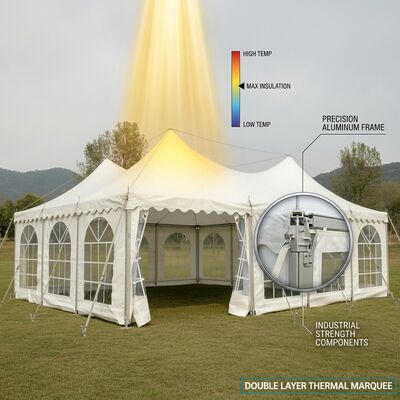

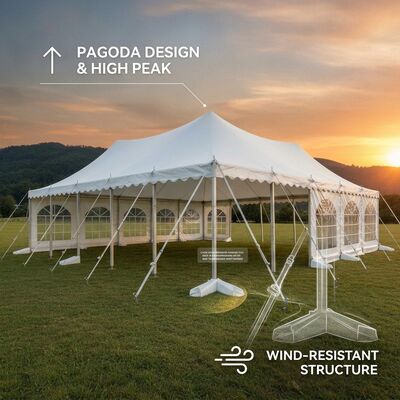

This model features multi-spire pagoda design, providing an elegant appearance and enhanced functionality for outdoor wedding reception. The 3.0m eave height with 5.5m ridge height creates a spacious, airy interior atmosphere perfect for high-end events.
| Parameter | Specification |
|---|---|
| Frame Material | 6061/T6 Hard Pressed Extruded Aluminum Alloy |
| Surface Treatment | Anodized Anti-Rust (Silver/Black/Custom) |
| Roof Cover | 850g/m² Double PVC Coated Polyester, UV Stabilized |
| Span Width | 25m |
| Length | 40m (Modular, Expandable) |
| Eave Height | 3.0m |
| Wind Load Rating | 100 km/h (EN 13782) |
| Snow Load Capacity | 0.5 kN/m² |
| Fire Certification | DIN4102 B1 / M2 |
| Temperature Range | -30°C to +70°C |
| Seating Capacity | Up to 1000 guests |
The modular bay system (5m standard bay distance) allows the tent length to be extended indefinitely. Multiple units can be combined side-by-side for extra-wide configurations, making this an infinitely scalable solution for events of any scale.
Certified installation crews can complete setup of this 25x40m structure within 1-2 working days, significantly faster than permanent construction. The modular bolt-together design requires no heavy machinery, and the entire system can be disassembled, transported, and re-erected at different venues repeatedly.
We offer comprehensive OEM/ODM services including custom sizes, colors (frame and fabric), logo printing on PVC covers, and tailored accessory packages to match your brand requirements.
|
|
