| 브랜드 이름: | TENDARS |
| 모델 번호: | PM-S-30x60m |
| MOQ: | 1세트 |
| 가격: | USD 57-134 / Square Meter |
| 포장에 대한 세부 사항: | 튼튼한 직조 가방에 접힌 PVC 직물, 보호 필름과 함께 묶인 알루미늄 프로파일, 수출 등급 합판 상자에 포장됨 |
| 지불 조건: | T/T,L/C,웨스턴 유니온 |

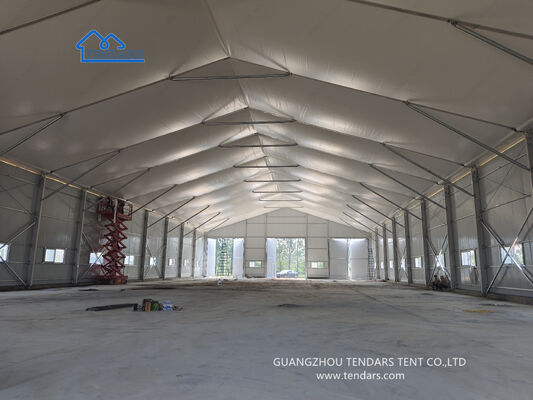

This 30x60m sandwich panel wall s series clear span A-frame marquee tent is professionally engineered for charity fundraising gala and outdoor celebrations. Designed with a clear span structure that eliminates interior support poles, it provides an unobstructed event space ideal for seating up to 1800 guests.
The frame is manufactured from 6061/T6 hard pressed extruded aluminum alloy with anodized anti-rust surface treatment, ensuring exceptional structural integrity and a service life exceeding 20 years. All aluminum profiles are precision-cut using advanced CNC machinery with tight tolerance control (±0.2mm), guaranteeing seamless assembly and reliable performance under demanding conditions.
The roof features 850g/m² double PVC-coated polyester fabric with UV-stabilized acrylic surface treatment. This high-performance material delivers superior waterproofing, UV resistance, and flame retardancy certified to DIN4102 B1 / M2 standards. The fabric withstands temperatures from -30°C to +70°C, making it suitable for year-round deployment across diverse climate zones.

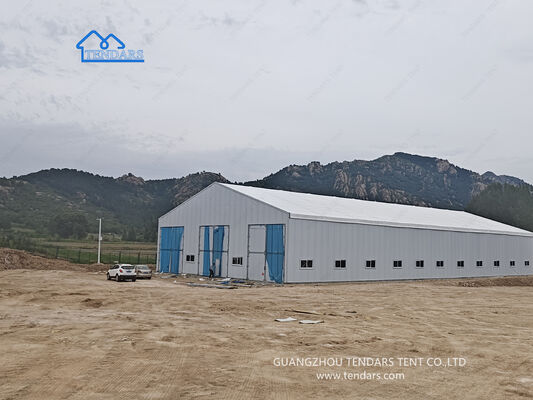

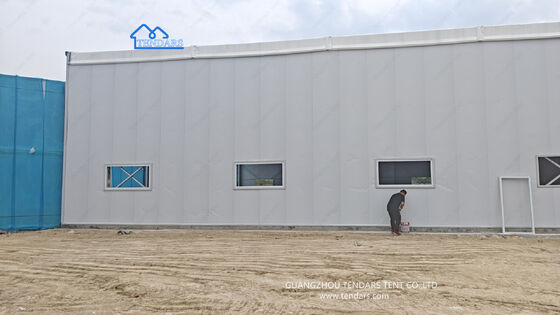

This model features thermal sandwich panel walls, providing an elegant appearance and enhanced functionality for charity fundraising gala. The 2.6m eave height with 5.1m ridge height creates a spacious, airy interior atmosphere perfect for high-end events.
| Parameter | Specification |
|---|---|
| Frame Material | 6061/T6 Hard Pressed Extruded Aluminum Alloy |
| Surface Treatment | Anodized Anti-Rust (Silver/Black/Custom) |
| Roof Cover | 850g/m² Double PVC Coated Polyester, UV Stabilized |
| Span Width | 30m |
| Length | 60m (Modular, Expandable) |
| Eave Height | 2.6m |
| Wind Load Rating | 100 km/h (EN 13782) |
| Snow Load Capacity | 0.5 kN/m² |
| Fire Certification | DIN4102 B1 / M2 |
| Temperature Range | -30°C to +70°C |
| Seating Capacity | Up to 1800 guests |
The modular bay system (5m standard bay distance) allows the tent length to be extended indefinitely. Multiple units can be combined side-by-side for extra-wide configurations, making this an infinitely scalable solution for events of any scale.
Certified installation crews can complete setup of this 30x60m structure within 1-2 working days, significantly faster than permanent construction. The modular bolt-together design requires no heavy machinery, and the entire system can be disassembled, transported, and re-erected at different venues repeatedly.
We offer comprehensive OEM/ODM services including custom sizes, colors (frame and fabric), logo printing on PVC covers, and tailored accessory packages to match your brand requirements.
|
|
